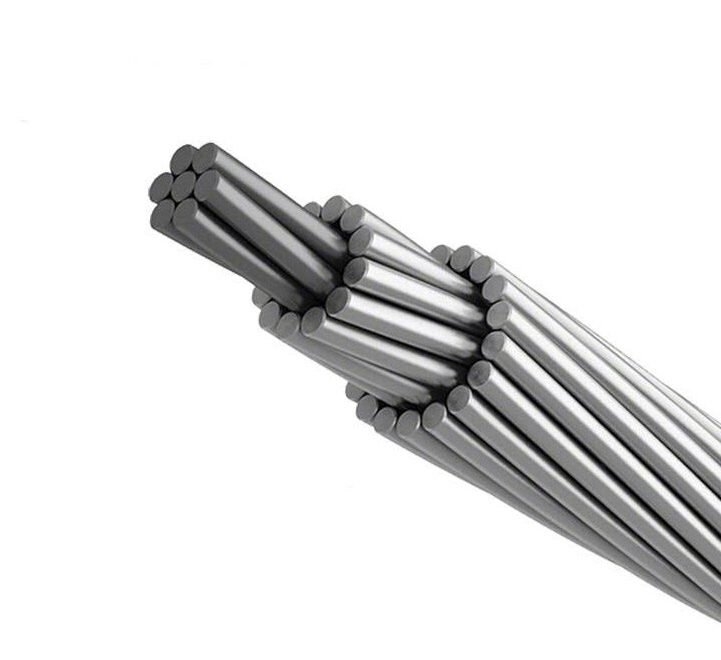

ACSR – Aluminium Conductors Steel Reinforced

Reliable Strength for Efficient Power Transmission

At Sanjay Conductors & Cables, ACSR (Aluminium Conductors Steel Reinforced) is our flagship product line, engineered to power efficient and dependable overhead transmission networks. We manufacture ACSR conductors ranging from 30 mm² to 520 mm², designed to meet the rigorous demands of modern electrical distribution, high-voltage, and extra-high-voltage lines.

By surrounding a high-tensile galvanized steel core with premium conductive aluminium strands, our ACSR conductors strike the perfect balance between superior electrical conductivity and exceptional structural resilience. The heavy-duty steel core allows the conductors to carry substantial mechanical loads and endure longer spans with fewer support towers, while the outer aluminium layer minimizes power loss during transmission. Built for long-term durability, Sanjay Conductors delivers consistent performance across diverse power infrastructures.

Key Features

Aluminium strands provide efficient power transmission with reduced losses.

Steel reinforcement delivers excellent mechanical strength for long-span applications.

Designed to perform reliably under demanding environmental conditions.

Suitable for overhead power transmission and distribution networks.

Some of the important sizes are as under:

Code Name	Area mm²	Stranding & Wire Dia Aluminium in mm	Stranding & Wire Dia Steel in mm	Calculated Sectional Area of Aluminium in mm	Calculated Sectional Area ACSR in mm	Overall Dia Of ACSR in mm	Weight KG/KM
MOLE	10	6/1.50	1/1.50	10.60	12.37	4.50	43
SC	18	6/1.95	1/1.59	18.10	21.12	5.88	73
SQUIRREL	20	6/2.11	1/2.11	20.98	24.48	6.33	85
WEASEL	30	6/2.59	1/2.59	31.61	36.88	7.77	128
RABBIT	50	6/3.35	1/3.35	52.88	61.70	10.05	214
RACCOON	80	6/4.09	1/4.09	78.83	91.97	12.27	319
DOG	100	6/4.72	7/1.57	105.00	118.50	14.15	394
LEOPARD	130	6/5.28	7/1.76	129.60	150.1	15.85	493
WOLF	150	30/2.59	7/2.59	158.10	194.90	18.13	726
PANTHER	200	30/3.00	7/3.00	212.10	261.50	21.00	974
KUNDAH	400	42/3.50	7/1.96	404.10	425.20	26.88	1281
ZEBRA	420	54/3.18	7/3.18	428.90	484.50	28.62	1621
MOOSE	520	54/3.53	7/3.53	528.50	597.00	31.77	2004
